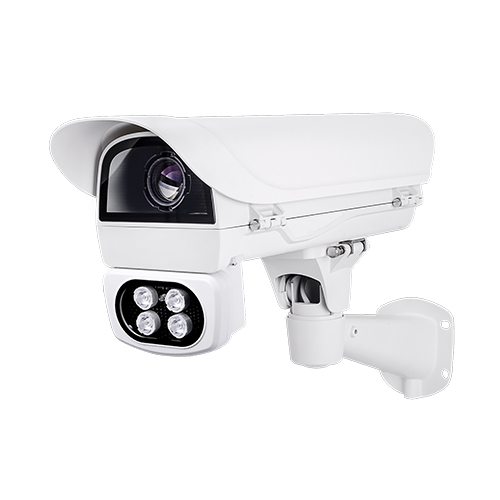

- 2메가 픽셀 1080p 고해상도 지원
- 12배줌 IR기능
- IP66 생활 방진, 방수, 내충격에 대한 인증으로 외부 감시 용이
- 초저조도, 네트워크 카메라
- 영상 압축기술 H.265기반의 1080p 고해상도 영상을 끊임없이 30프레임 전송 가능
- 120M 원거리 투광이 가능한 IR LED
- 안개보정 기능 제공
- 24시간 선명한 감시영상 전송
- 개요
- 사양
- 다운로드
Using Ultra-Low Light sensor
With 2M 1/1.9”CMOS image sensor, you can check High image quality and clear color images in dim light environment. It also has the ability to powerful low noise effect and outstanding noise reduction
Powerful zoom capability
12x optical zoom, 12x digital zoom, excellent automatic focusing, and 7.0 ~ 84.0 mm focus range. Especially, since the aperture is F1.5~F1.9, it is possible to acquire better quality image than any other camera
Triple codec, Simultaneous multi steaming
Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. you can build a complete remote video monitoring system using H.264 / H.265
Weather Proof Design
With IP66 protection, the camera ensures normal operation regardless of rain, snow or storm
| CAMERA | ||
| Image Device | 1/1.9“ Progressive Scan CMOS | |
| Effective Pixels | Approx. 2.38 Mega pixels | |
| Aspect Ratio | HD : 16:9, SD : 4:3 | |
| Zoom Ratio | Optical x12, Digital x12 | |
| Focal Length | 7.0~84.0mm, F1.5~F1.9 | |
| Horizontal angle | 51.1°(W)~5°(T) | |
| MIN. Illumination | COLOR | 0.005 Lux@F1.5 |
| B/W | 0.0005 Lux@F1.5, 0 Lux (IR) | |
| Day & Night | Auto(CDS/CAM)/Day/Night(ICR) | |
| Focus | Auto/Manual | |
| DNR | OFF/Level Adjustment(1~5) | |
| Shutter Speed | 1 sec~1/10,000sec(60/30 mode) 1 sec~1/10,000sec(50/25 mode) | |
| AGC | Auto/Manual | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| WDR/BLC | OFF/BLC/WDR(Digital) | |
| Other Function | Defog(Digital), HLC, Dynamic slow shutter | |
| GENERAL | ||
| Sensor In /Out | Built-in 1 Input/1 Output(Relay) | |
| Audio In / Out | 1 Audio In/1 Audio Out | |
| Video Out | BNC : VBS 1.0 Vp-p | |
| IR distance | More than 75M Wave : 850nm | |
| Power | AC24V | |
| Approvals | IIK10, KC, IP66 | |
| Housing | Weather proof/Vandal Proof Structure | |
| Material | Body : Aluminum Die-casting | |

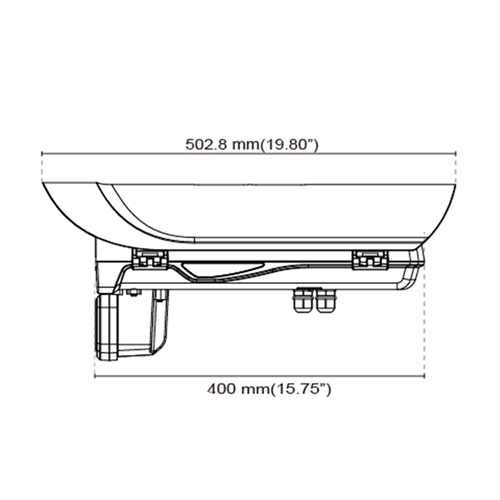

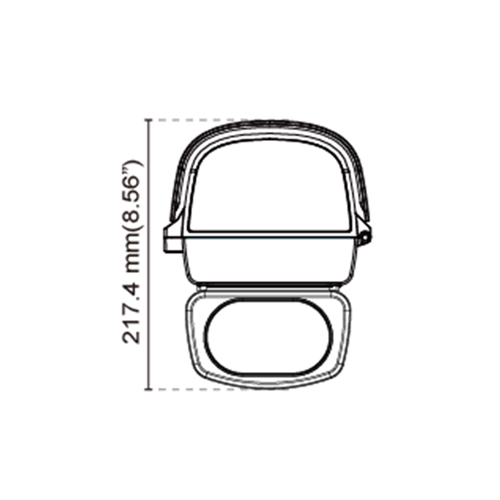

| Dimension | Net : 502.8 x 217.4 mm | |
| Weight | Net : 3.9Kg, Package : 4.5Kg | |
| Operating Temp | -40°C~50°C | |
| NETWORK | ||
| Ethernet | 10Base-T/100Base-Tx | |
| Video Compression | H.265/H.264/MJPEG | |
| Video Stream | Main | 1080p/720p |
| Second | D1/CIF/QCIF | |
| Third | 1080p/720p/D1/CIF/QCIF | |
| Stream Type | Video/Complex(Video/Audio) Stream | |
| Frame Rate | Max. 30/25 fps for 1080P/720P/D1/CIF/QCIF | |
| Bitrate | 30Kbps~16Mbps. Supports CBR/VBR/FIX PQ | |
| Audio Compression | Two way, G.711 PCM. μ-law 64kbps 8kHz | |
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB | |
| IVA | Motion Detection, Occlusion Detection, Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | |
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client | |
| Alarm | Pre-Post Alarm | |
| Max No. of Clients | 10 users(Depending on user bandwidth) | |
| Web Brower | IE 6.0 above | |
| Protocols Support | IPv4 | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* |
| DDNS | Pubblic DDNS services Suport : www.dyndns.com | |
| ONVIF | PROFILE S | |
| Security | User Authentication(ID/PW), IP Address/Mac Address filtering* | |
